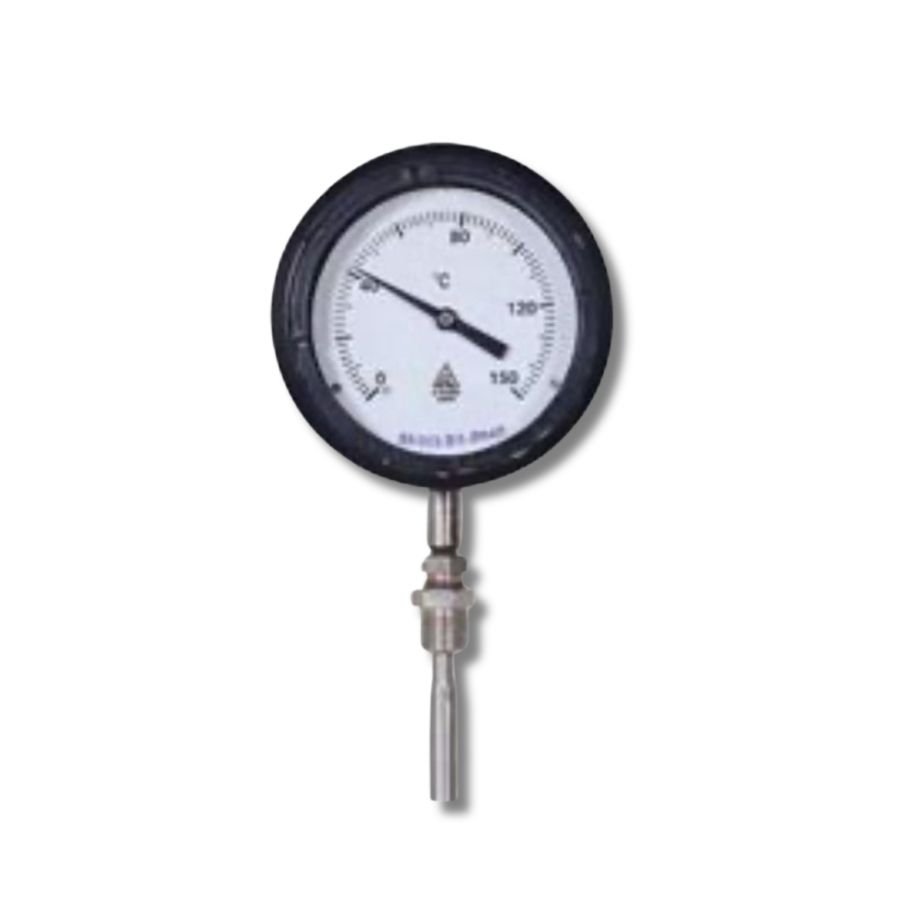

H Guru Gas Filled Rigid Stem Type Temperature Gauge

Experience precision and reliability with the H Guru Gas Filled Rigid Stem Type Temperature Gauge. Engineered to meet the highest industry standards, this temperature gauge is ideal for various industrial applications, ensuring accurate temperature monitoring and control.

Key Features

• Standard Compliance: Conforms to EN 13190, ensuring top-notch quality and performance.
• Dial Sizes Available: Choose between 100 mm and 150 mm dial sizes to suit your specific needs.
• High Accuracy: Maintains an accuracy of ±1%, providing trustworthy temperature readings.

High Accuracy and Durability

Equipped with a stainless steel 316L Bourdon tube and 316 SS bulb & stem, the gauge ensures longevity and consistent performance even in harsh environments.

Robust Construction

The gauge features a die-cast aluminum and SS 304 case with a bayonet bezel as standard, with SS 316 options available for enhanced durability. The gear mechanism is crafted from SS 304, ensuring smooth and reliable operation.

Weatherproof Protection

Designed to withstand the elements, the H Guru Temperature Gauge boasts an IP-67 weatherproof rating, compliant with IS/IEC 60947 Part I standards, making it suitable for outdoor and demanding industrial settings.

Versatile Process Connections

Compatible with 3/8″, 1/2″ BSP & NPT male connections, and M20 x 1.5 threads, the gauge offers adjustable lengths up to 2000 mm, providing flexibility for various installation requirements.

User-Friendly Display

The aluminum dial features a white background with clear black letters, while the micrometer zero-adjustable black aluminum pointer ensures easy and precise reading of temperature values.

Customizable Options

Enhance functionality with optional features such as glycerine filling for dampening and electric contacts for automated monitoring systems.

Easy Mounting

Designed for versatility, the gauge supports both direct bottom and back entry mounting, simplifying installation processes in any setup.

Over-Range Protection

Safeguard your equipment with an over-range capacity of 130% of the full-scale deflection (FSD), preventing damage from unexpected temperature spikes.

Optional Accessories

Enhance your temperature monitoring system with Thennowell accessories, available to complement the H Guru Temperature Gauge.
